PRODUCT INFORMATION

LIGHWEIGHT

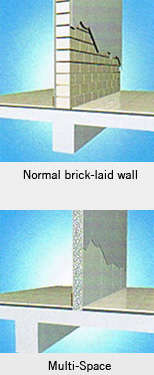

The surface of Multi-Space™ is flat and smooth, which does not require plastering. The pieces of Multi-Space™ are join with tongue and groove, therefore, the thickness of the wall can be reduced, yet perform better features as the weight of Multi-Space is only 70 kg/m2, which is only 1/4 of the weight of normal brick-laid walls.

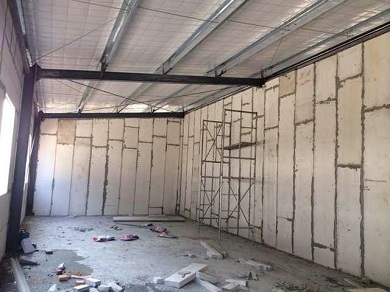

INTERNAL PARTITION WALL
Material Specification (mm) Weight (kg/m2) Total Weight (kg/m2)
Material Plastering
Sand Lime Brick 180 324 80 404
120 216 80 296
90 162 80 242
Aerated Concrete Brick 180 144 80 224
120 96 80 176
90 72 80 152
Holo Brick 180 180 80 260
120 120 80 200
90 90 80 170
Multi-Space™ Lightweight Concrete Wall Panel 75 65 25 90
100 75 25 100

The weight of Multi-Space will not affect the structure of the building and it can be used to do partition in everywhere* of the building.

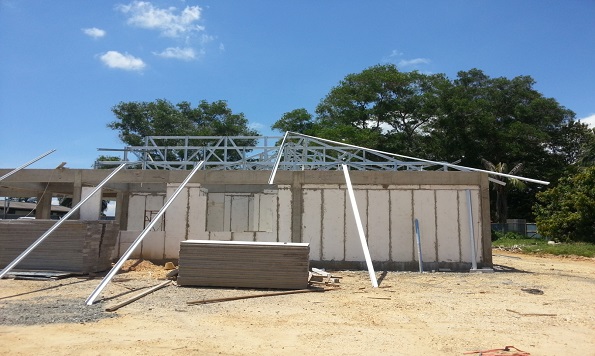

EXTERNAL WALL
Material Specification (mm) Weight (kg/m2) Total Weight (kg/m2)
Material Plastering
Sand Lime Brick 240 438 80 518
180 324 80 404
120 216 80 296
Other Brick 240 288 80 368
180 216 80 296
120 144 80 224
Holo Brick 240 240 80 320
180 180 80 260
120 120 80 200
Multi-Space™ Lightweight Concrete Wall Panel 100 75 25 100
125 85 25 110
